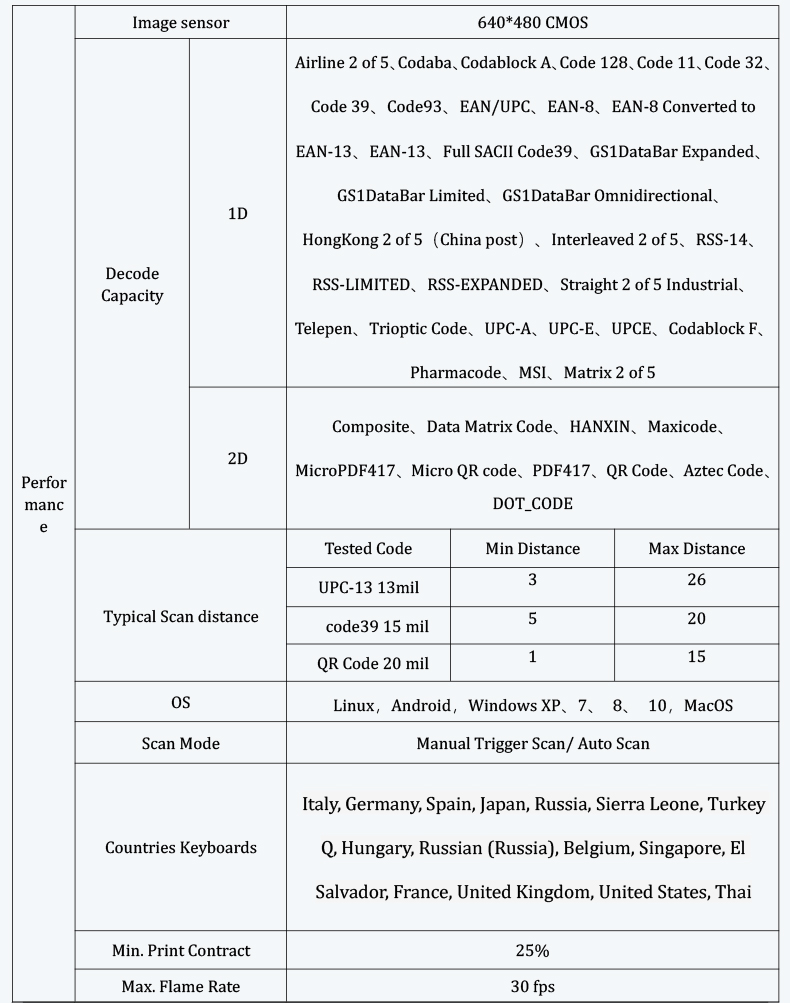

Sensor | CMOS 640*480 | ||
Light source | White LED | ||
Aming | Red LED | ||

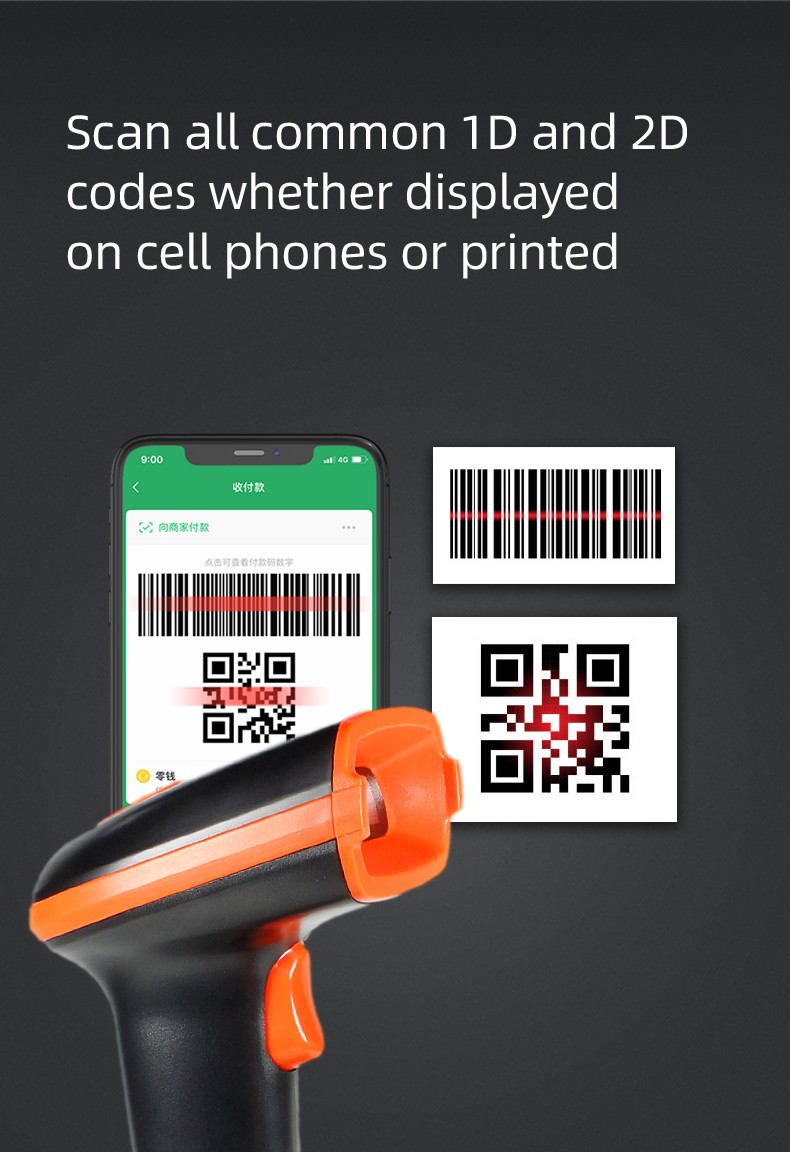

Decode Capacity | 2D | Aztec Code、AU Postal Code、Data Matrix Code、Codablock A、Codablock F、DOT_Code、ENG Postal Code、HANXIN、PDF417、MicroPDF417、JP Postal Code、KIX Postal Code、Maxicode、QR Code、Micro QR Code、PLANET Code、POSTNET Code、Royal Infomail Code、UPU Postal Code | |
1D | Airline 2 of 5、Codabar、Code 128、Code 11、Code 32、Code 39、Code93、Composite、EAN-8、EAN-13、UPC-A、UPC-E、Full ASCII Code39、GS1 DataBar Omnidirectional、GS1 DataBar Expanded、GS1 DataBar Limited、Matrix 2 of 5、Pharma code、Hong Kong 2 of 5(China post)、Interleaved 2 of 5、Telepen、MSI、Straight 2 of 5 Industrial、Trioptic Code | ||
Resolution* | ≥5mil | ||
Decode Range | UPC-13 (13mil) | 30mm~ 250mm（Barcode size：32mm*25mm） | |
PDF417 (6.67mil) | 30mm~120mm（Bardoe size：17mm*12mm） | ||
Code39 (5mil) | 30mm~90mm（Barcode szie：25mm*10mm） | ||
Data Matrix (10mil) | 25mm~110mm (Barcode size：6mm*6mm） | ||
QR (15mil) | 25mm~150mm（Barcode size：8mm*8mm） | ||
Print contrast | ≥20% | ||
Scan angel | Skew±60°Pitch±60°Roll 360° | ||
Specification | Interface | USB、RS-232、TTL | |

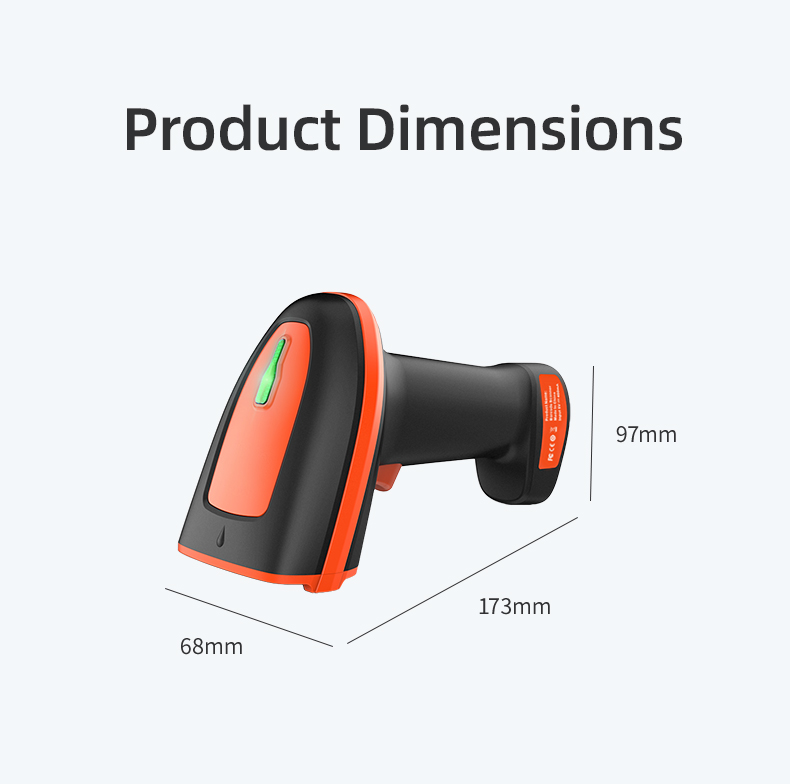

Dimension | 68(W)×96.5 (D)×175(H) | ||
Net.Weigth | 142g | ||
Work Voltage | 5 VDC±5% | ||
Fixed Power Consumption(Typical) | 1360mW | ||
Current 5 VDC | |||
Environmental | Operating Temperature | -10℃~+60℃ | |
Storage temperature | -20℃~+70℃ | ||
Humidity | 5%~95%(Non-condensing) | ||
Ambient Light | 0~100,000LUX | ||
Cable | USB | USB cable | |
RS-232 | RS-232 cable(Optional)， |
PRODUCT DESCRIPTION
Sensor | CMOS 640*480 | ||
Light source | White LED | ||
Aming | Red LED | ||
Decode Capacity | 2D | Aztec Code、AU Postal Code、Data Matrix Code、Codablock A、Codablock F、DOT_Code、ENG Postal Code、HANXIN、PDF417、MicroPDF417、JP Postal Code、KIX Postal Code、Maxicode、QR Code、Micro QR Code、PLANET Code、POSTNET Code、Royal Infomail Code、UPU Postal Code | |
1D | Airline 2 of 5、Codabar、Code 128、Code 11、Code 32、Code 39、Code93、Composite、EAN-8、EAN-13、UPC-A、UPC-E、Full ASCII Code39、GS1 DataBar Omnidirectional、GS1 DataBar Expanded、GS1 DataBar Limited、Matrix 2 of 5、Pharma code、Hong Kong 2 of 5(China post)、Interleaved 2 of 5、Telepen、MSI、Straight 2 of 5 Industrial、Trioptic Code | ||
Resolution* | ≥5mil | ||
Decode Range | UPC-13 (13mil) | 30mm~ 250mm（Barcode size：32mm*25mm） | |
PDF417 (6.67mil) | 30mm~120mm（Bardoe size：17mm*12mm） | ||
Code39 (5mil) | 30mm~90mm（Barcode szie：25mm*10mm） | ||
Data Matrix (10mil) | 25mm~110mm (Barcode size：6mm*6mm） | ||
QR (15mil) | 25mm~150mm（Barcode size：8mm*8mm） | ||
Print contrast | ≥20% | ||
Scan angel | Skew±60°Pitch±60°Roll 360° | ||
Specification | Interface | USB、RS-232、TTL | |
Dimension | 68(W)×96.5 (D)×175(H) | ||
Net.Weigth | 142g | ||
Work Voltage | 5 VDC±5% | ||
Fixed Power Consumption(Typical) | 1360mW | ||
Current 5 VDC | |||
Environmental | Operating Temperature | -10℃~+60℃ | |
Storage temperature | -20℃~+70℃ | ||
Humidity | 5%~95%(Non-condensing) | ||
Ambient Light | 0~100,000LUX | ||
Cable | USB | USB cable | |
RS-232 | RS-232 cable(Optional)， |
